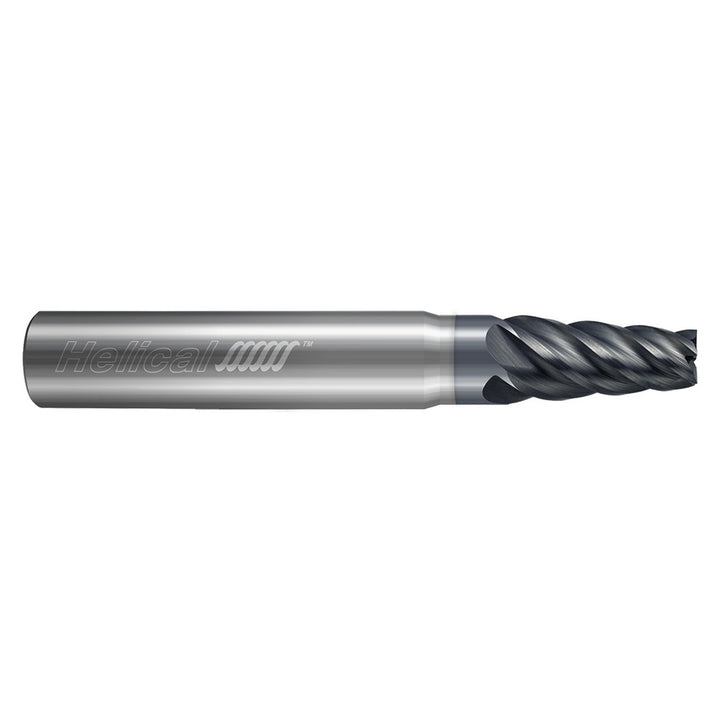

0.2500" 5-Flute Solid Carbide Tapered End Mill, APLUS - Helical Solutions 84923

Helical Solutions

0.2500" 5-Flute Solid Carbide Tapered End Mill, APLUS - Helical Solutions 84923

MFR# 84923Series Specialty Profiles - Tapered End Mills - 5 Flute - Square - Variable Pitch

$51.35List $59.95 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 84923 is a 0.2500 5-flute Solid Carbide tapered end mill with a APLUS finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series Specialty Profiles - Tapered End Mills - 5 Flute - Square - Variable Pitch.

Specifications

CentercuttingYes
Coating finishAPLUS
Coolant throughNo
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Included angle degree10
Length of cut in3/4
Mill diameter0.2500
Number of flutes5
Overall length in2-1/2
Shank diameter in1/2
Small end diameter in1/4
Taper angle per side5.00
