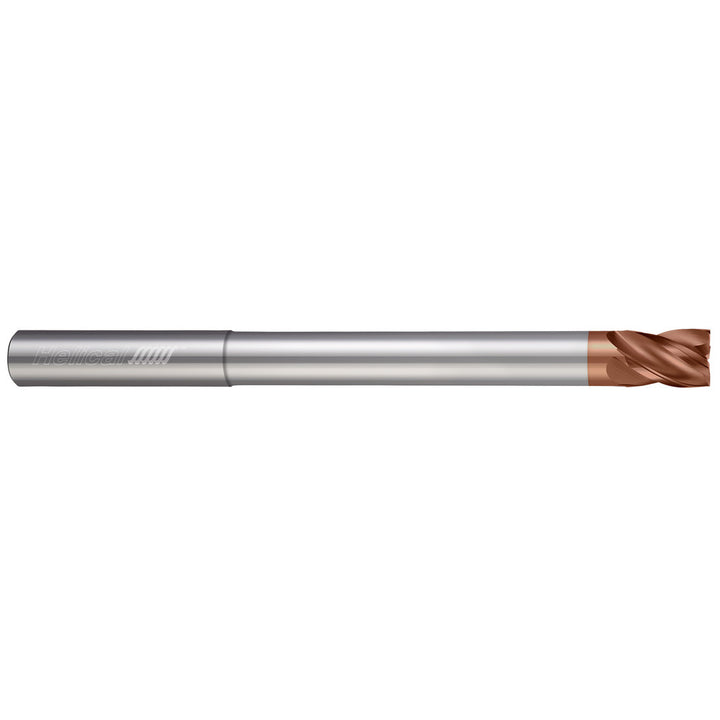

3/16" 4-Flute Solid Carbide Square End Mill, Tplus - Helical Solutions 86943

MFR# 86943Series End Mills for Stainless & High Temp - 4 Flute - Square - Variable Pitch - Reduced Neck

$55.69List $65.01 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 86943 is a 3/16 4-flute Solid Carbide square end mill with a Tplus finish for longer tool life. Suited for steel, stainless steel, cast iron. 7/32 length of cut, 3 overall length. Series End Mills for Stainless & High Temp - 4 Flute - Square - Variable Pitch - Reduced Neck.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTplus

Coating finish familyTplus

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle35

Length of cut in7/32

Material gradeSolid Carbide

Mill diameter in3/16

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in1-5/16

Shank diameter in3/16

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
