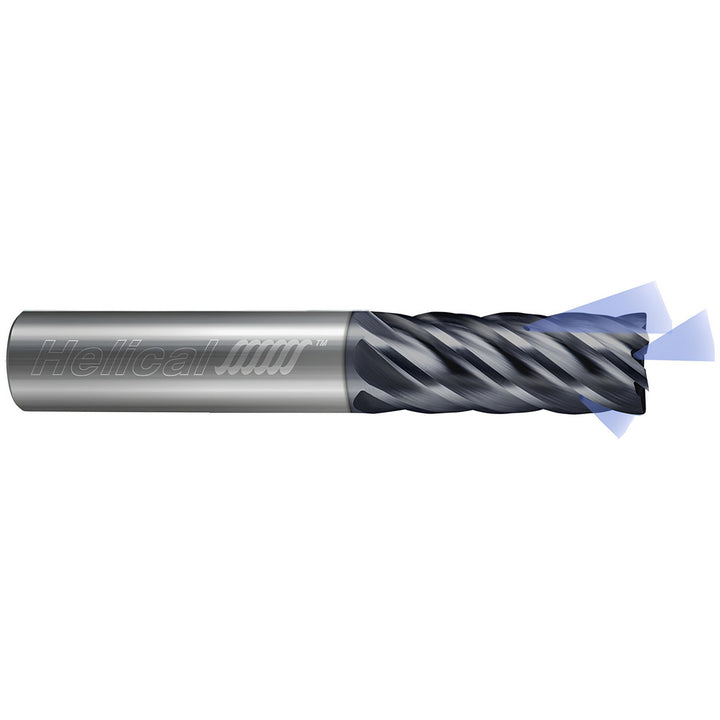

3/8" 7-Flute Solid Carbide Corner Radius End Mill, Tplus - Helical Solutions 87154

Helical Solutions

3/8" 7-Flute Solid Carbide Corner Radius End Mill, Tplus - Helical Solutions 87154

MFR# 87154Series HEV-7

$91.39List $106.70 Save 14%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes7
MaterialSolid Carbide
CoatingTplus

Description

The Helical Solutions 87154 is a 3/8 7-flute Solid Carbide corner radius end mill with a Tplus finish for longer tool life. Suited for stainless steel, high temperature alloy, hard material. 1/2 length of cut, 2 overall length. Series HEV-7.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTplus
Coolant throughNo
Corner radius0.0100
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in1/2
Length typeStub
Material applicationStainless Steel; High-Temperature Alloy; Hardened Steel
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes7
Overall length in2
Overall length tolerance-0.0620/0.0620 in
PitchVariable
Primary workpiece materialStainless Steel; High Temperature Alloy; Hard Material
Secondary workpiece materialSteel; Cast Iron
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexYes
