Helical Solutions

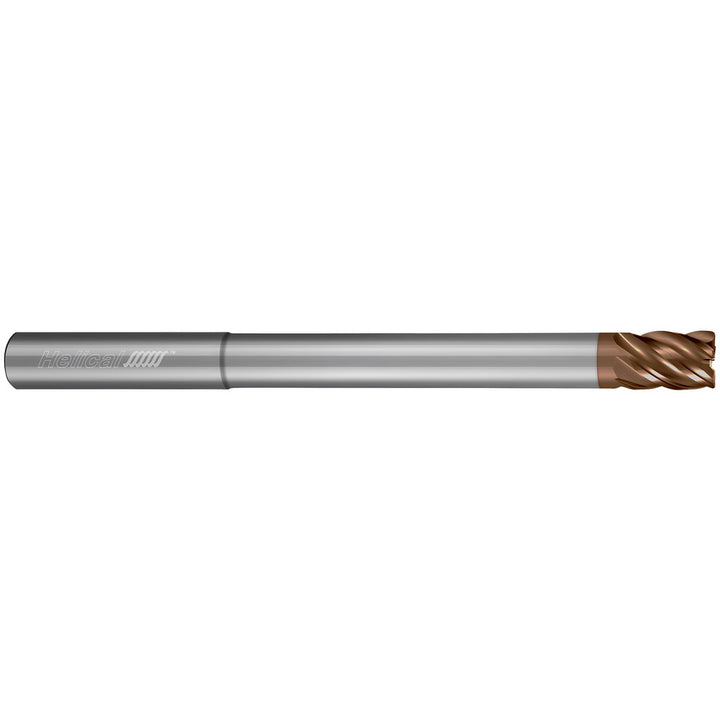

3/16" 6-Flute Solid Carbide Corner Radius End Mill, Tplus - Helical Solutions 87432

MFR# 87432Series HEV-C-6

$58.99List $68.86 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes6

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 87432 is a 3/16 6-flute Solid Carbide corner radius end mill with a Tplus finish for longer tool life. Suited for steel, stainless steel, cast iron. 9/16 length of cut, 2-1/2 overall length. Series HEV-C-6.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishTplus

Coolant throughNo

Corner radius0.0100

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Length of cut in9/16

Length typeRegular

Material applicationStainless Steel; High-Temperature Alloy; Hardened Steel

Material removal typeRoughing

Mill diameter in3/16

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes6

Overall length in2-1/2

Overall length tolerance-0.0620 to 0.0620 in

PitchVariable

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
