3/8" 4-Flute Solid Carbide Square End Mill - Hertel 12469052

Hertel

3/8" 4-Flute Solid Carbide Square End Mill - Hertel 12469052

MFR# 12469052Series HSQSC4-CC

$21.98List $27.69 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

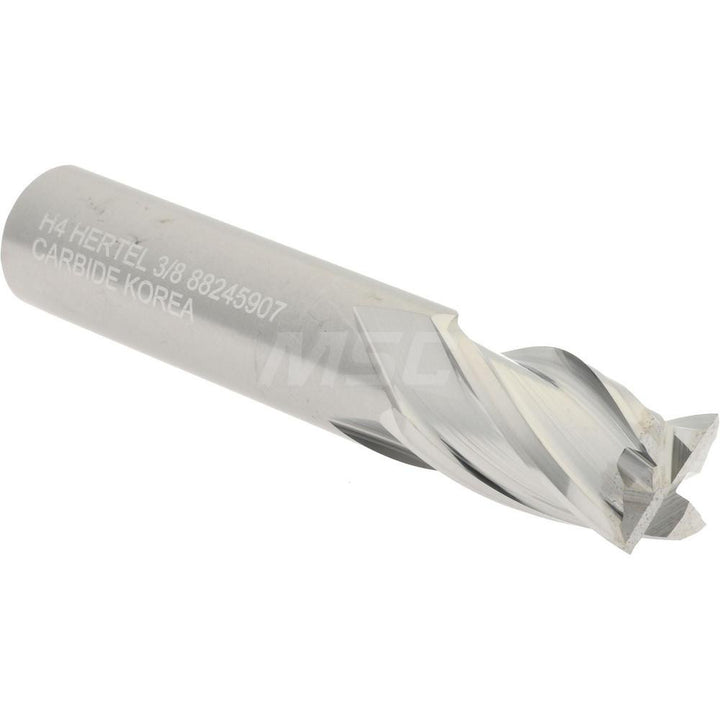

The Hertel 12469052 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series HSQSC4-CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Material gradeMicrograin
Mill diameter in3/8
Number of flutes4
Overall length in2
Shank diameter in3/8
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
