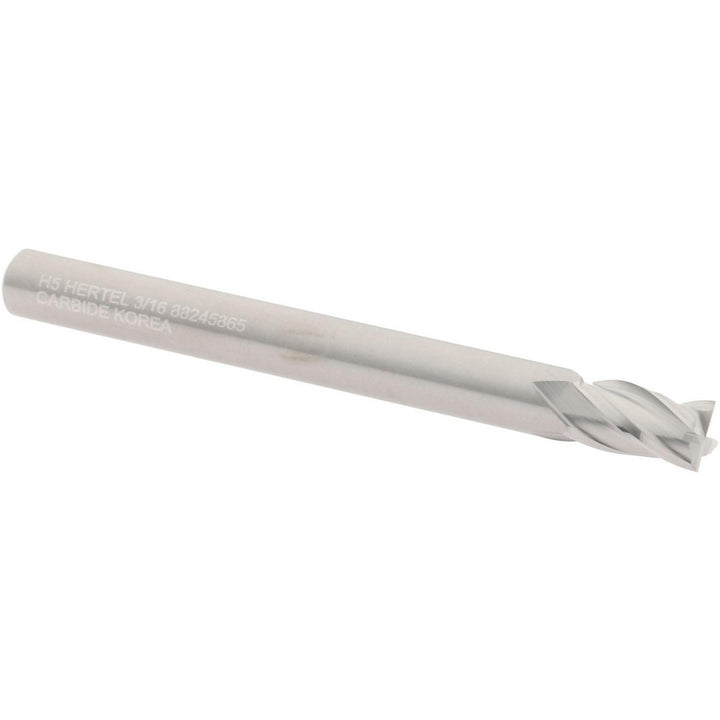

3/16" 4-Flute Solid Carbide Square End Mill - Hertel 15071289

Hertel

3/16" 4-Flute Solid Carbide Square End Mill - Hertel 15071289

MFR# 15071289Series HSQSC4-CC

$12.12List $15.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Hertel 15071289 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length. Series HSQSC4-CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter in3/16
Number of flutes4
Overall length in2
Shank diameter in3/16
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
