Hertel

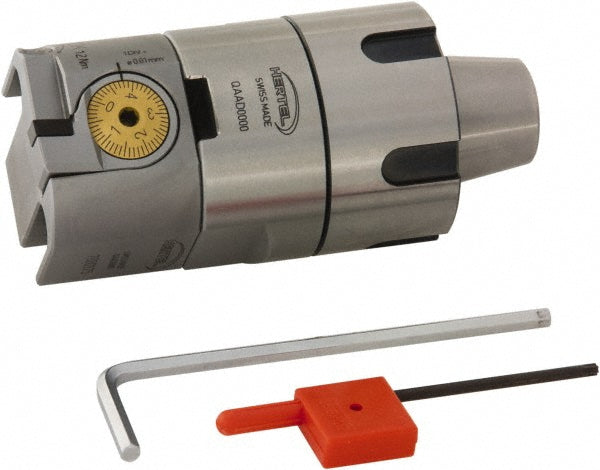

ER32 Single Cutter Boring Head - Hertel 7000390
MFR# 7000390Series HBH150
$1,019.03List $1,279.15
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel 7000390 boring heads & accessories. Series HBH150.
Specifications
Actuation typeManual
Body diameter in2
Boring bar hole diameter0.6300
Head typeSingle Cutter
Machine compatibilityCNC; Manual
Maximum bore diameter3.4600
Minimum bore diameter0.1200
Modular connection sizeER32
Mount typeCollet Chuck
Overall length in2-3/4
Projection in2-3/4
Rate of feed0.2000
Shank typeTaper
Taper sizeER32
