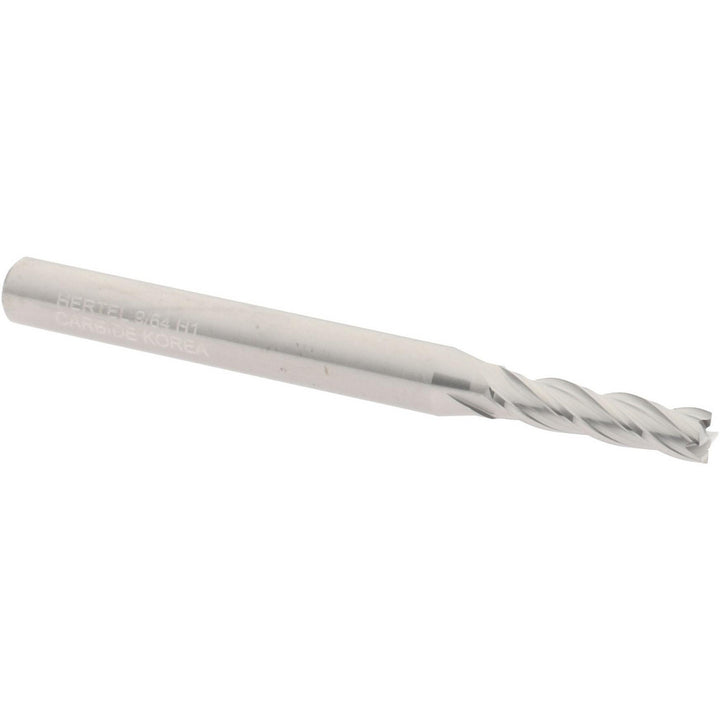

9/64" 4-Flute Solid Carbide Square End Mill - Hertel 750036

Hertel

9/64" 4-Flute Solid Carbide Square End Mill - Hertel 750036

MFR# 750036

$15.38List $19.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide

Description

The Hertel 750036 is a 9/64 4-flute Solid Carbide square end mill. 9/16 length of cut, 2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length of cut range0.5000 - 0.6000
Mill diameter in9/64
Number of flutes4
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Kennametal9/64" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN/TiAlN - Kennametal 5824337 $24.26 Titan USA9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC99509 $19.73 Kennametal9/64" 4-Flute Solid Carbide Square End Mill, TiAlN - Kennametal 6086565 $33.39 Titan USA9/64" 4-Flute Solid Carbide Square End Mill - Titan USA TC10509 $14.02
