1" 4-Flute Solid Carbide Square End Mill - Hertel 750097

Hertel

1" 4-Flute Solid Carbide Square End Mill - Hertel 750097

MFR# 750097Series HSQSC4-CC

$466.80List $598.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

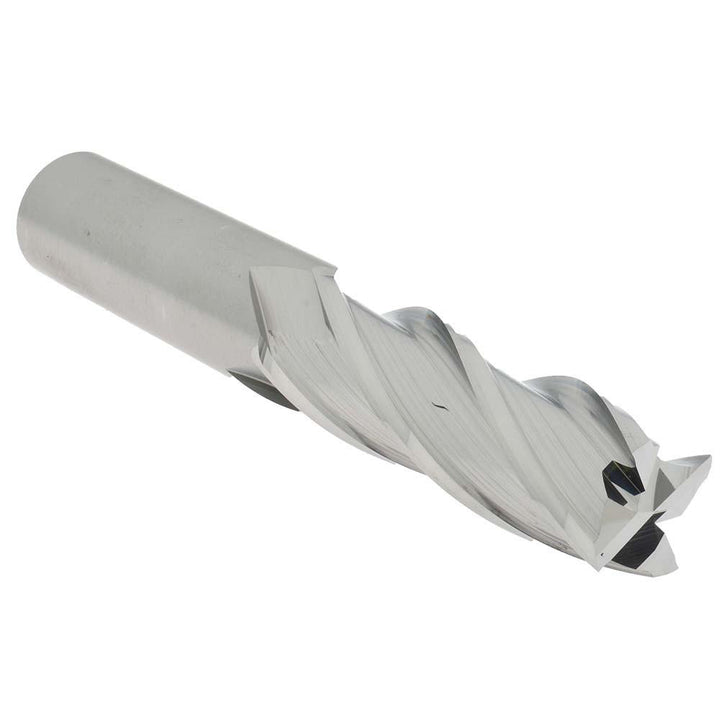

The Hertel 750097 is a 1 4-flute Solid Carbide (Micrograin) square end mill. 3 length of cut, 6 overall length. Series HSQSC4-CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3
Length of cut range2.0000+
Material gradeMicrograin
Mill diameter in1
Number of flutes4
Overall length in6
Shank diameter in1
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
