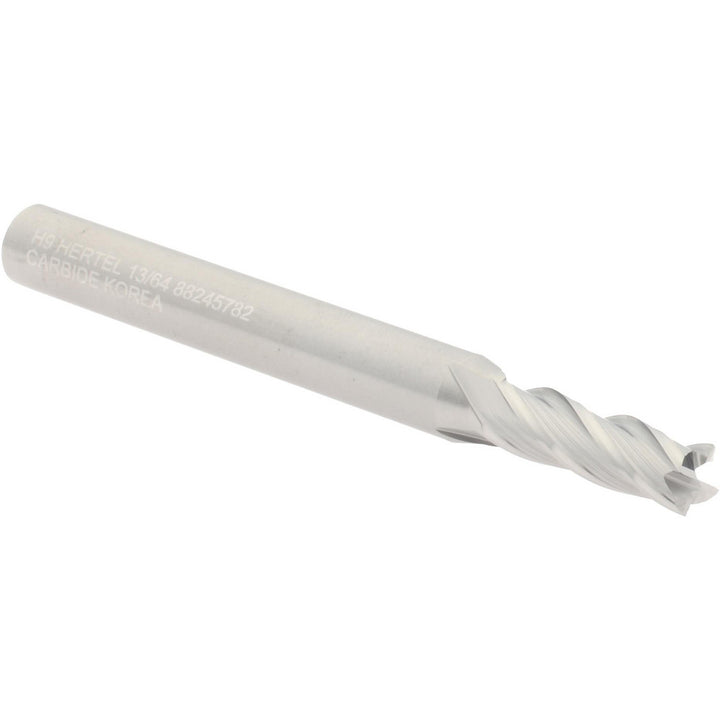

13/64" 4-Flute Solid Carbide Square End Mill - Hertel 750154

Hertel

13/64" 4-Flute Solid Carbide Square End Mill - Hertel 750154

MFR# 750154

$21.42List $27.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter13/64
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Hertel 750154 is a 13/64 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Material gradeMicrograin
Mill diameter in13/64
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
