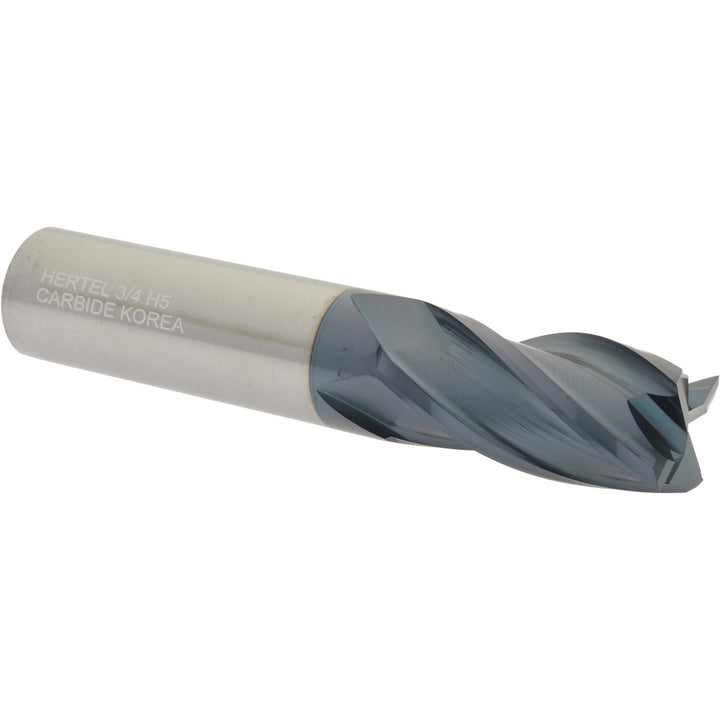

3/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750209

Hertel

3/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750209

MFR# 750209

$188.35List $241.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Hertel 750209 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 4 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in4
Shank diameter in3/4
Variable helixNo
Variable indexNo
