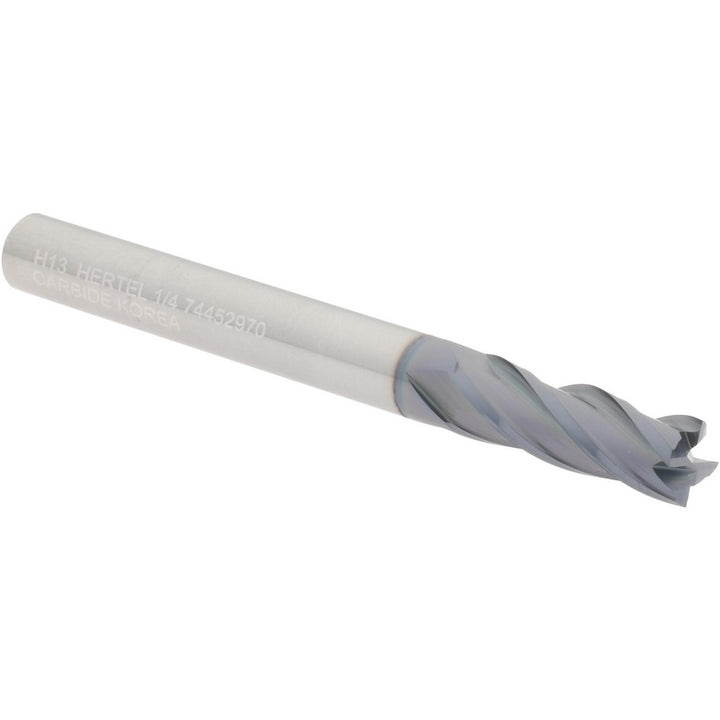

1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750218

Hertel

1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750218

MFR# 750218

$24.67List $31.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Hertel 750218 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
