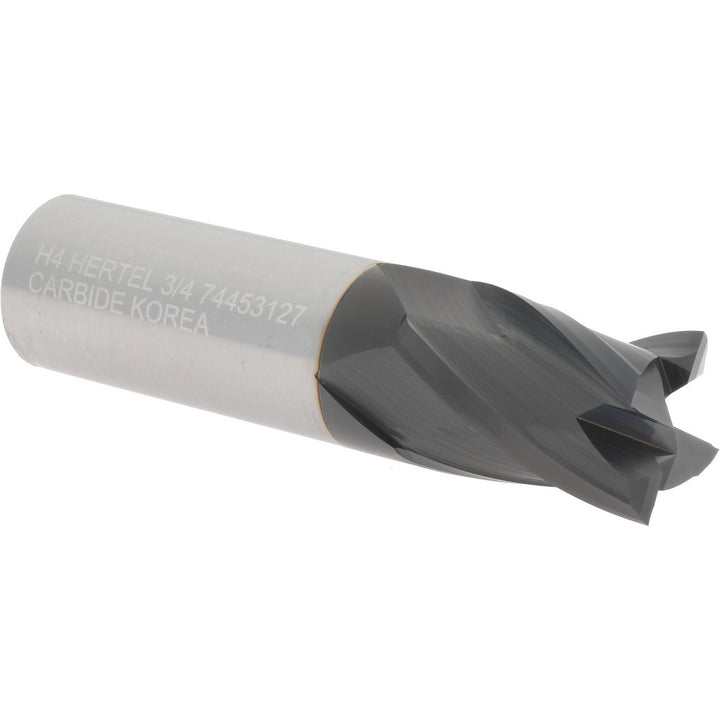

3/4" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750245

Hertel

3/4" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750245

MFR# 750245

$216.23List $277.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The Hertel 750245 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 3 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeStub
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Shank diameter in3/4
Variable helixNo
Variable indexNo
