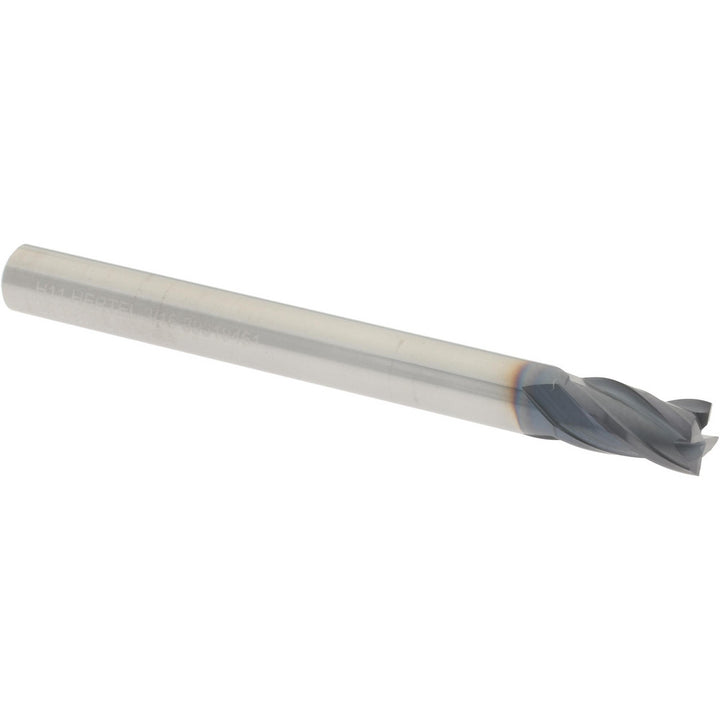

3/16" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750355

Hertel

3/16" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750355

MFR# 750355

$18.50List $23.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Hertel 750355 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Number of flutes4
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
