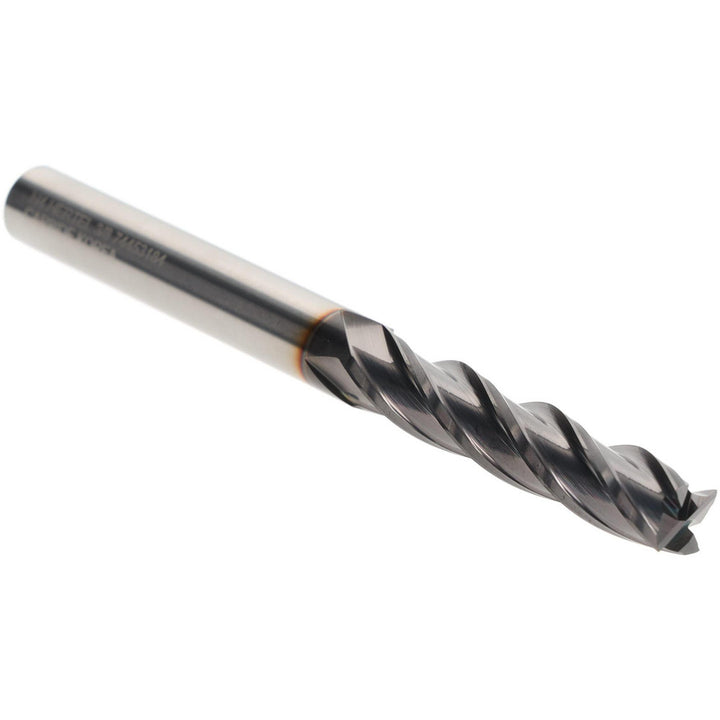

3/8" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750435

Hertel

3/8" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750435

MFR# 750435

$63.34List $79.83 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The Hertel 750435 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 1-3/4 length of cut, 4 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/4
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in4
Shank diameter in3/8
Variable helixNo
Variable indexNo
