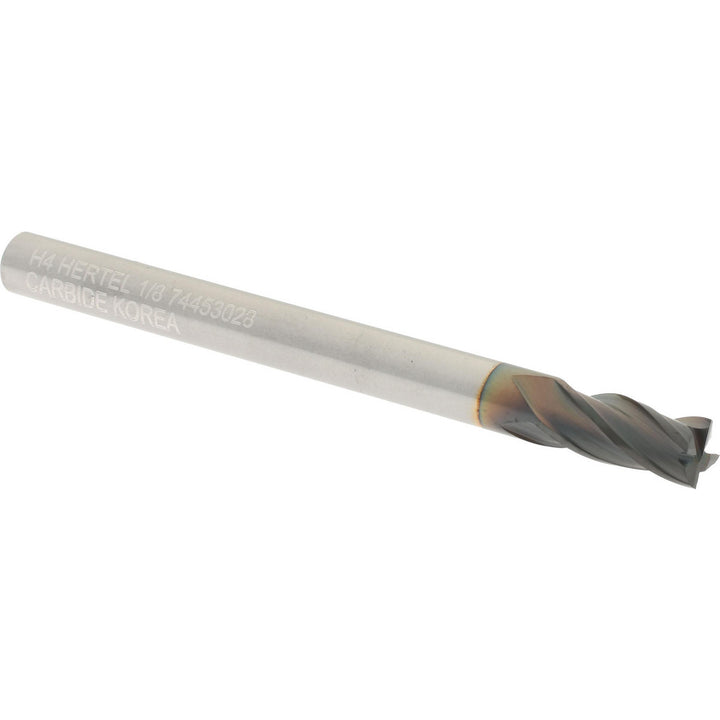

1/8" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750527

Hertel

1/8" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750527

MFR# 750527

$9.09List $11.65 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The Hertel 750527 is a 1/8 4-flute Solid Carbide (Micrograin) square end mill. 1/4 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/4
Length of cut range0.2000 - 0.3000
Length typeStub
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
