5/16" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750555

Hertel

5/16" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750555

MFR# 750555

$24.36List $31.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

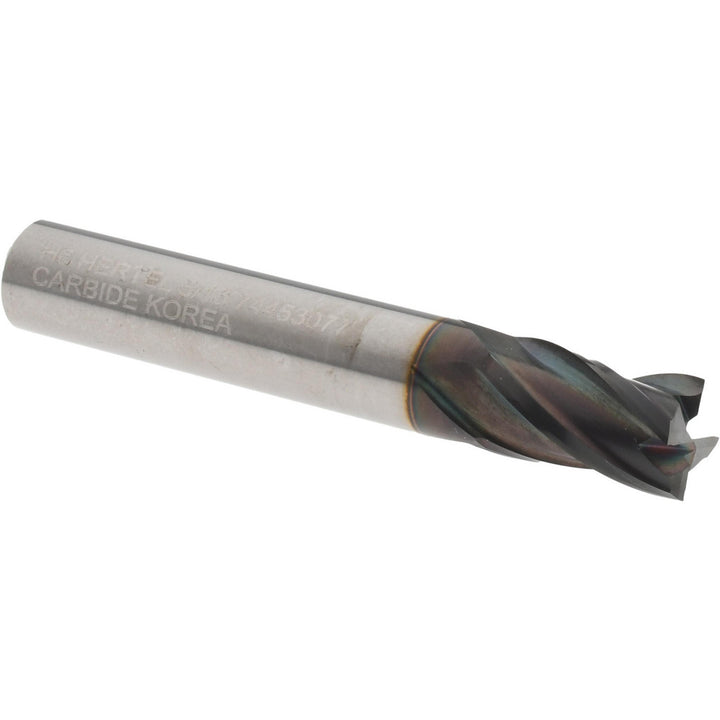

The Hertel 750555 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in5/16
Variable helixNo
Variable indexNo
