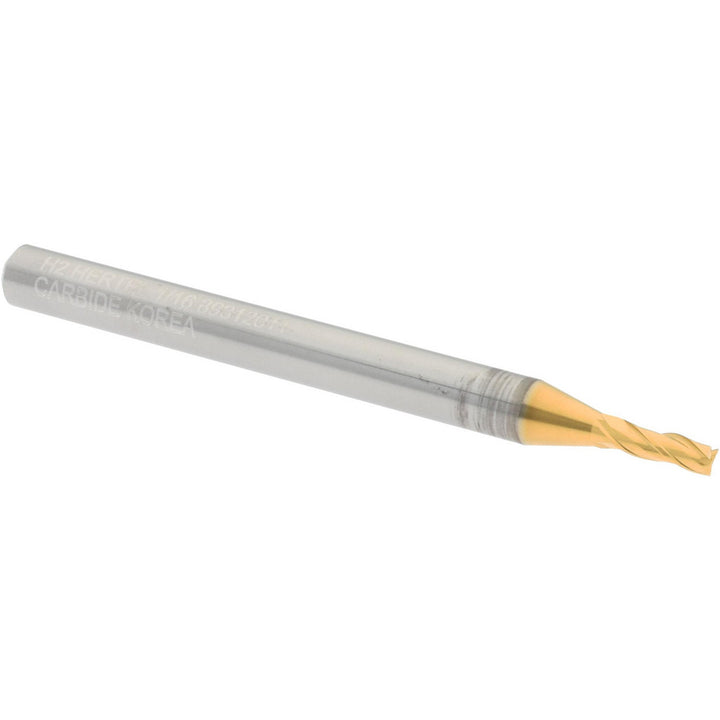

1/16" 3-Flute Solid Carbide Square End Mill, TiN - Hertel 750618

Hertel

1/16" 3-Flute Solid Carbide Square End Mill, TiN - Hertel 750618

MFR# 750618

$17.44List $22.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes3
MaterialSolid Carbide
CoatingTiN

Description

The Hertel 750618 is a 1/16 3-flute Solid Carbide (Micrograin) square end mill. 3/16 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Material gradeMicrograin
Mill diameter in1/16
Number of flutes3
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Guhring1/16" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199540015900 $19.91 SGS1/16" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 30814 $17.00 SGS1/16" 3-Flute Solid Carbide Square End Mill, TiCN - SGS 30774 $17.00 Hertel1/16" 3-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750658 $14.20
