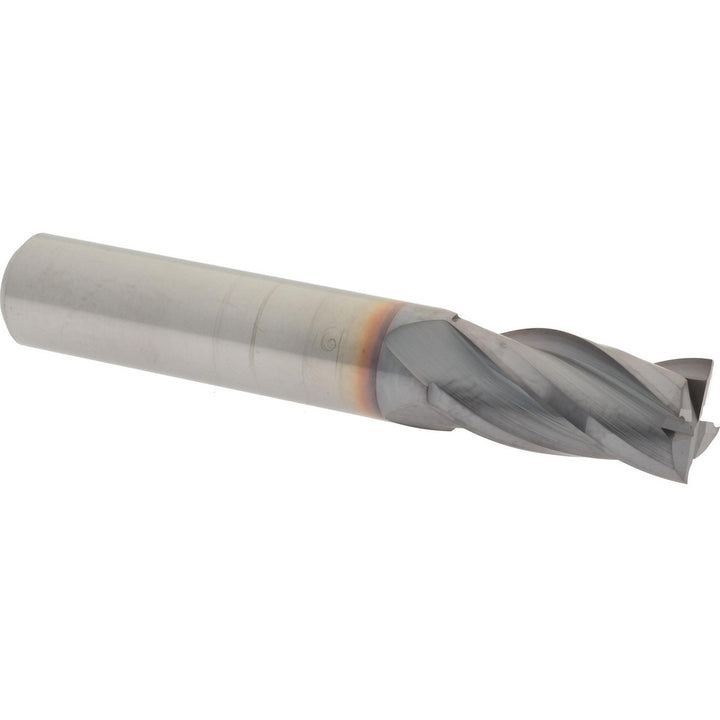

7/16" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750632

Hertel

7/16" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750632

MFR# 750632

$79.60List $102.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The Hertel 750632 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 7/8 length of cut, 2-3/4 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Variable helixNo
Variable indexNo
