Hertel

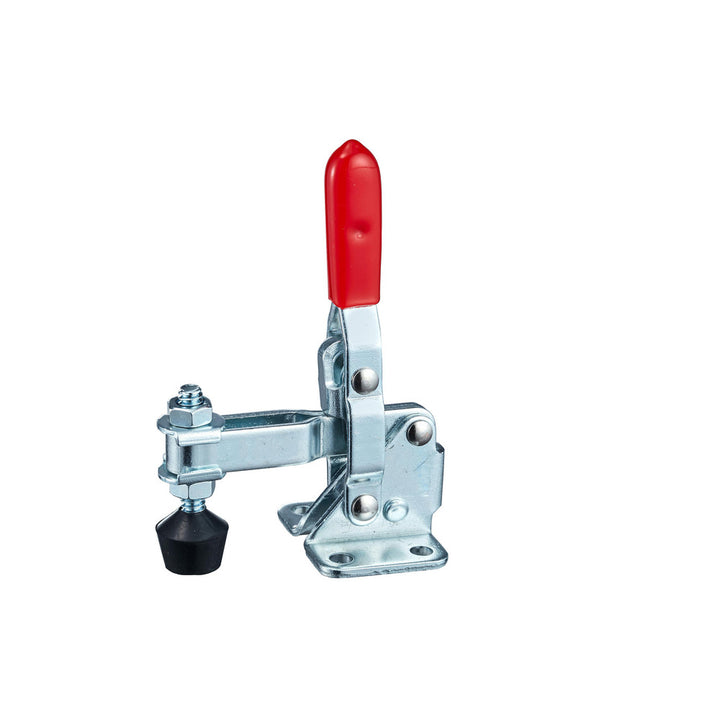

Toggle Clamp - Hertel CH-101-A
MFR# CH-101-A
$9.68List $12.16
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-101-A is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees100
Bar styleU-Bar
Bar thickness0.3150
Bar width0.3620
Base length in1
Base styleFlanged
Base width in1.3110
Finish coatingZinc
Front of base to tip of toggle bar1.0240
Front of base to toggle tip1.02in
Handle colorRed
Handle materialSteel
Handle movement degrees56
Handle orientationVertical
Handle styleStraight
Height under bar0.7280
Holding capacity kg49.89
Holding capacity lb110.00
Holding capacity n489.30
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.625
MaterialSteel
Mounting hole diameter0.1720
Number of mounting holes4
Overall height3.1100
Overall length2.1380
Spindle length1.3780
Width distance between mount holes0.9370
