Hertel

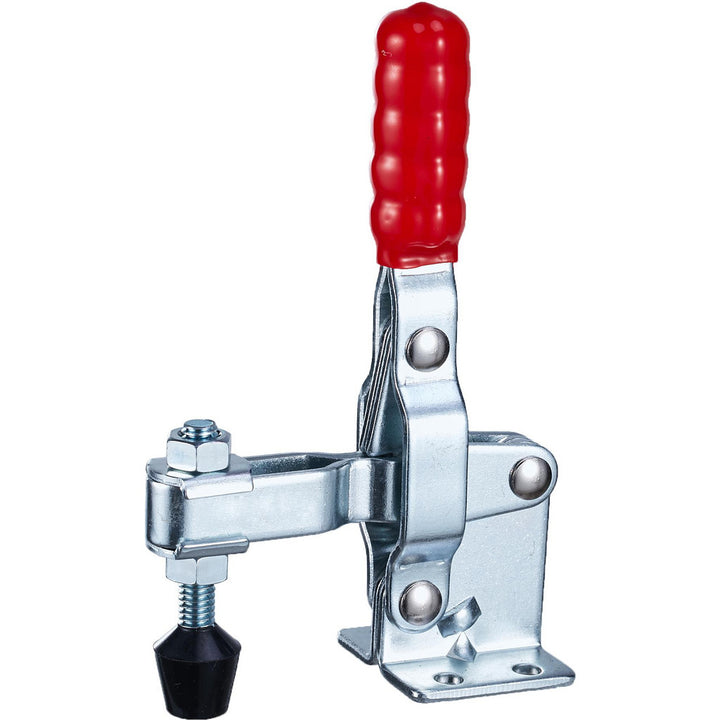

Toggle Clamp - Hertel CH-101-D
MFR# CH-101-D
$16.19List $20.33
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-101-D is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees100
Bar styleU-Bar
Bar thickness0.5510
Bar width0.6060
Base length (mm)39.40
Base styleFlanged
Base width in1.6540
Finish coatingZinc
Front of base to tip of toggle bar2.1260
Front of base to toggle tip2.12in
Handle colorRed
Handle materialSteel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Height under bar1.4170
Holding capacity kg180.08
Holding capacity lb397.00
Holding capacity n1765.94
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.75
MaterialSteel
Mounting hole diameter0.2500
Number of mounting holes4
Overall height5.8270
Overall length3.6770
Spindle length2.4800
Width distance between mount holes1.2200
