Hertel

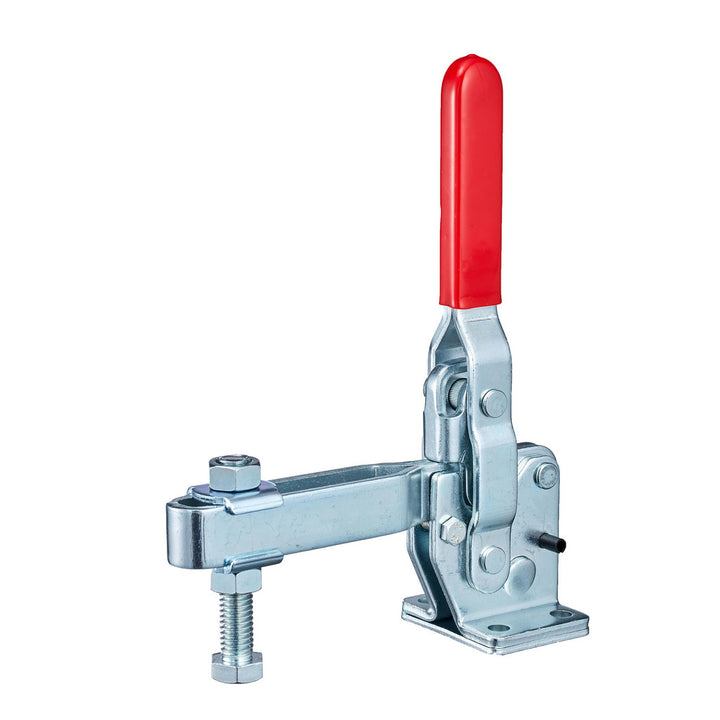

Toggle Clamp - Hertel CH-10247
MFR# CH-10247
$30.15List $37.84
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-10247 is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees100
Bar styleU-Bar
Bar thickness0.8860
Bar width0.9530
Base length in2
Base styleFlanged
Base width in2.5280
Finish coatingZinc
Front of base to tip of toggle bar5.0390
Front of base to toggle tip5.03in
Handle colorRed
Handle materialSteel
Handle movement degrees62
Handle orientationVertical
Handle styleStraight
Height under bar1.9880
Holding capacity kg449.96
Holding capacity lb992.00
Holding capacity n4412.61
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.25
MaterialSteel
Mounting hole diameter0.3438
Number of mounting holes4
Overall height9.1340
Overall length7.0390
Spindle length3.0000
Width distance between mount holes1.7800
