Hertel

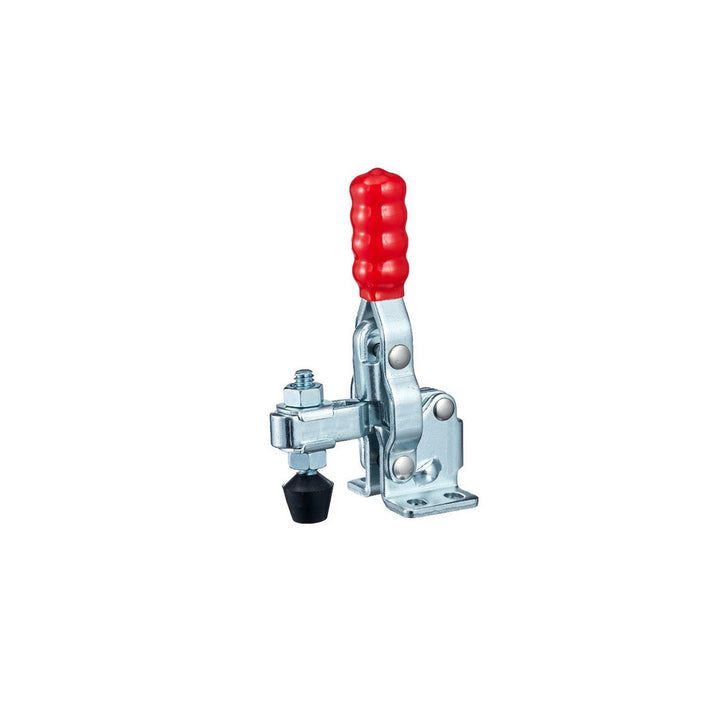

Toggle Clamp - Hertel CH-12050-U
MFR# CH-12050-U
$10.07List $12.64
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-12050-U is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees100
Bar styleU-Bar
Bar thickness0.3860
Bar width0.4880
Base length in1
Base styleFlanged
Base width in1.5630
Finish coatingZinc
Front of base to tip of toggle bar1.3110
Front of base to toggle tip1.31in
Handle colorRed
Handle materialSteel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Height under bar0.8940
Holding capacity kg90.72
Holding capacity lb200.00
Holding capacity n889.64
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.5
MaterialSteel
Mounting hole diameter0.2030
Number of mounting holes4
Overall height4.1340
Overall length2.4730
Spindle length1.4960
Width distance between mount holes1.1220
