Hertel

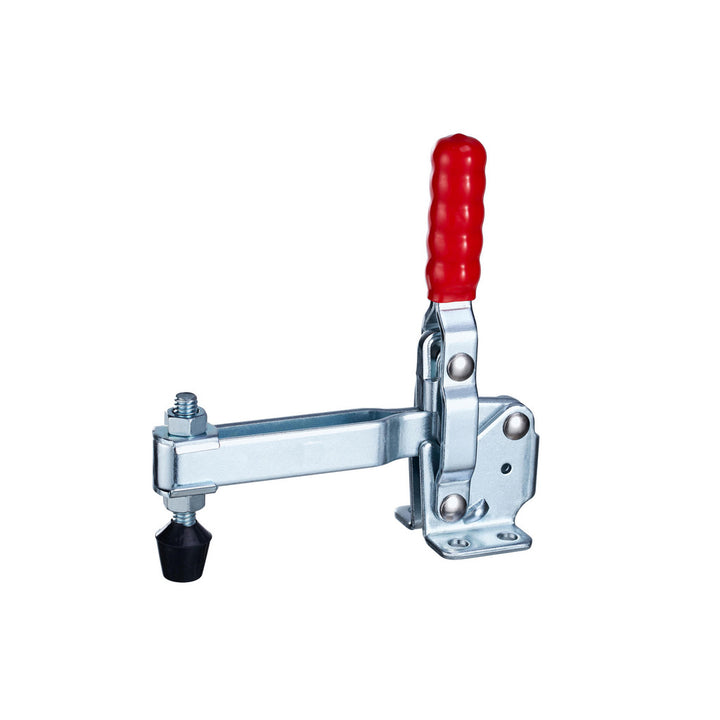

Toggle Clamp - Hertel CH-12132
MFR# CH-12132
$21.26List $26.68
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-12132 is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees100
Bar styleU-Bar
Bar thickness0.6300
Bar width0.6060
Base length (mm)34.90
Base styleFlanged
Base width in1.8110
Finish coatingZinc
Front of base to tip of toggle bar3.7800
Front of base to toggle tip3.78in
Handle colorRed
Handle materialSteel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Height under bar1.2520
Holding capacity kg226.80
Holding capacity lb500.00
Holding capacity n2224.10
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.75
MaterialSteel
Mounting hole diameter0.2800
Number of mounting holes4
Overall height5.6690
Overall length5.5510
Spindle length2.4800
Width distance between mount holes1.2520
