Hertel

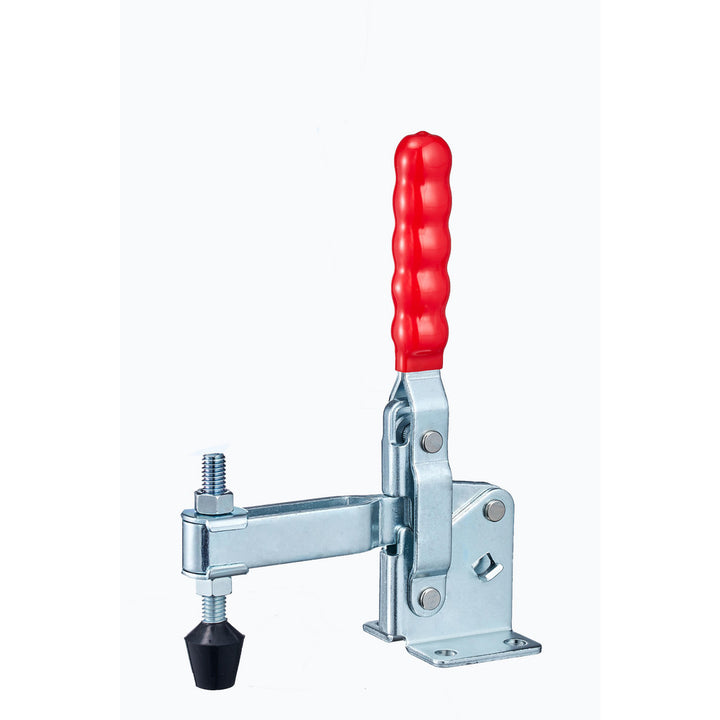

Toggle Clamp - Hertel CH-12265
MFR# CH-12265
$20.29List $25.48
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-12265 is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees105
Bar styleU-Bar
Bar thickness (mm)19.00
Bar width0.7480
Base length (mm)49.20
Base styleFlanged
Base width in2.5320
Finish coatingZinc
Front of base to tip of toggle bar3.3940
Front of base to toggle tip3.39in
Handle colorRed
Handle materialSteel
Handle movement degrees58
Handle orientationVertical
Handle styleStraight
Height under bar1.7090
Holding capacity kg340.19
Holding capacity lb750.00
Holding capacity n3336.15
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.25
MaterialSteel
Mounting hole diameter0.3438
Number of mounting holes4
Overall height8.1100
Overall length5.5910
Spindle length3.5000
Width distance between mount holes1.7840
