Hertel

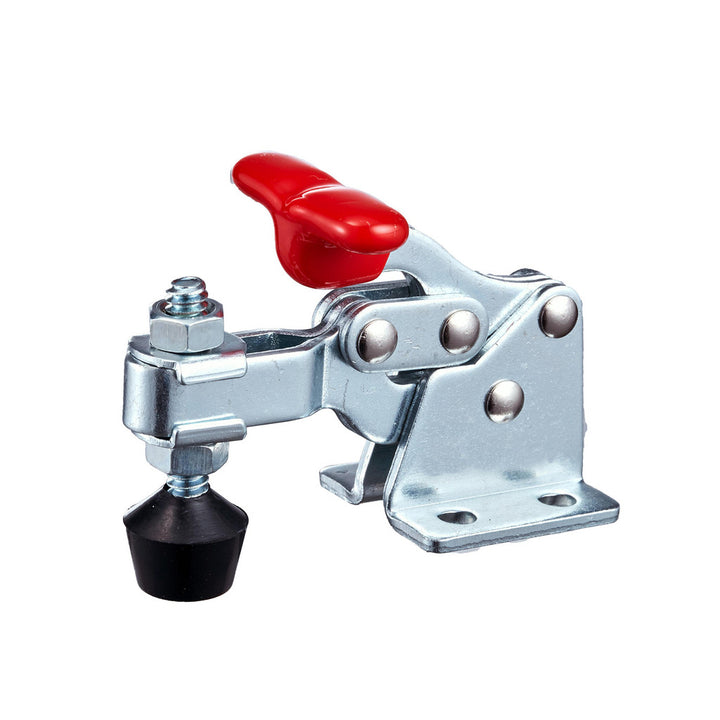

Toggle Clamp - Hertel CH-13005
MFR# CH-13005
$11.22List $14.08
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-13005 is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleU-Bar
Bar thickness0.3110
Bar width0.3540
Base length (mm)26.20
Base styleFlanged
Base width in1.0000
Finish coatingZinc
Front of base to tip of toggle bar1.2320
Front of base to toggle tip1.23in
Handle colorRed
Handle materialSteel
Handle movement degrees170
Handle orientationVertical
Handle styleT-Handle
Height under bar0.5790
Holding capacity kg68.04
Holding capacity lb150.00
Holding capacity n667.23
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.5313
MaterialSteel
Mounting hole diameter0.1720
Number of mounting holes4
Overall height1.6140
Overall length2.2640
Spindle length1.3780
Width distance between mount holes0.6260
