Hertel

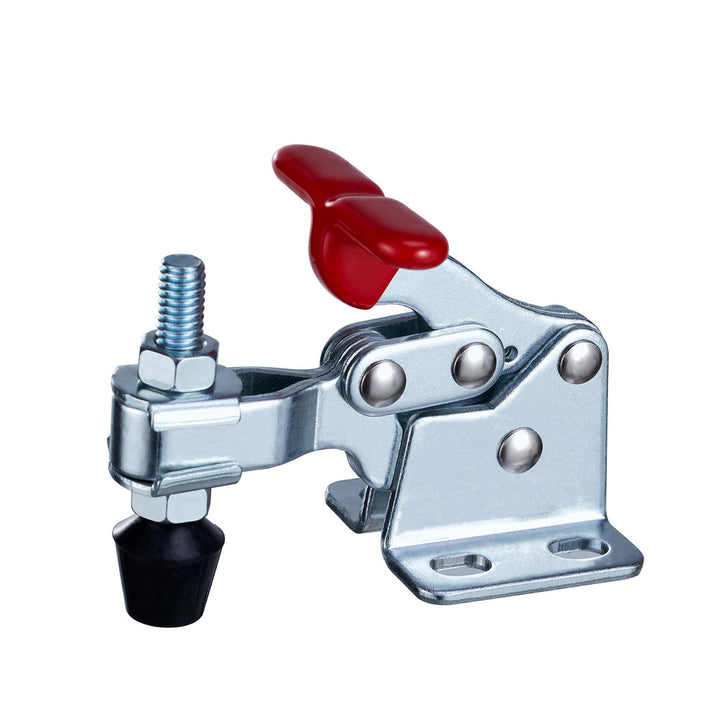

Toggle Clamp - Hertel CH-13007
MFR# CH-13007
$17.37List $21.80
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-13007 is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleU-Bar
Bar thickness0.5000
Bar width0.6140
Base length (mm)44.00
Base styleFlanged
Base width in1.8100
Finish coatingZinc
Front of base to tip of toggle bar1.9570
Front of base to toggle tip1.95in
Handle colorRed
Handle materialSteel
Handle movement degrees170
Handle orientationVertical
Handle styleT-Handle
Height under bar0.8750
Holding capacity kg150.14
Holding capacity lb331.00
Holding capacity n1472.35
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.91
MaterialSteel
Mounting hole diameter0.2800
Number of mounting holes4
Overall height2.5590
Overall length3.6890
Spindle length2.4800
Width distance between mount holes1.1570
