Hertel

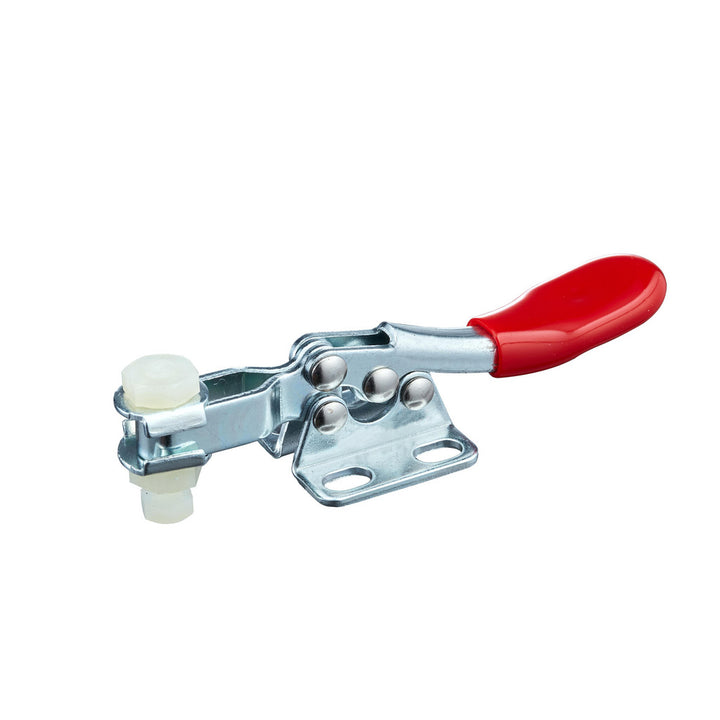

Toggle Clamp - Hertel CH-201
MFR# CH-201
$7.46List $9.36
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-201 is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleU-Bar
Bar thickness0.2760
Bar width0.3150
Base length (mm)23.80
Base styleFlanged
Base width in0.9370
Finish coatingZinc
Front of base to tip of toggle bar0.7870
Front of base to toggle tip0.78in
Handle colorRed
Handle materialSteel
Handle movement degrees80
Handle orientationHorizontal
Handle styleStraight
Height under bar0.3150
Holding capacity kg27.22
Holding capacity lb60.00
Holding capacity n266.89
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.5313
MaterialSteel
Mounting hole diameter0.1700
Number of mounting holes4
Overall height0.6970
Overall length3.0910
Spindle length0.7480
Width distance between mount holes0.6260
