Hertel

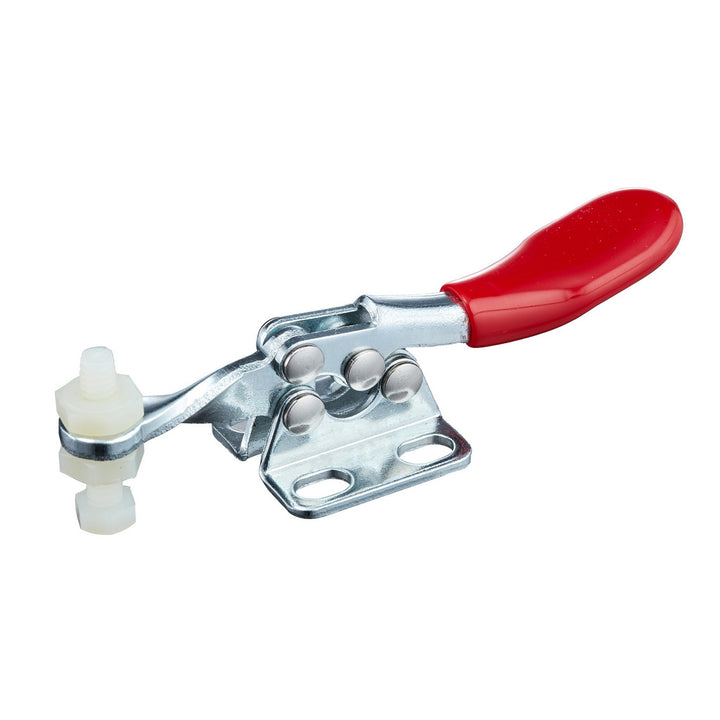

Toggle Clamp - Hertel CH-201-A
MFR# CH-201-A
$7.14List $8.96
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-201-A is a steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleSolid
Bar thickness0.1180
Bar width0.3740
Base length (mm)23.80
Base styleFlanged
Base width in0.9370
Finish coatingZinc
Front of base to tip of toggle bar0.8860
Front of base to toggle tip0.88in
Handle colorRed
Handle materialSteel
Handle movement degrees80
Handle orientationHorizontal
Handle styleStraight
Height under bar0.3940
Holding capacity kg27.22
Holding capacity lb60.00
Holding capacity n266.89
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in0.5313
MaterialSteel
Mounting hole diameter0.1700
Number of mounting holes4
Overall height0.6970
Overall length3.1890
Spindle length0.7480
Width distance between mount holes0.6260
