Hertel

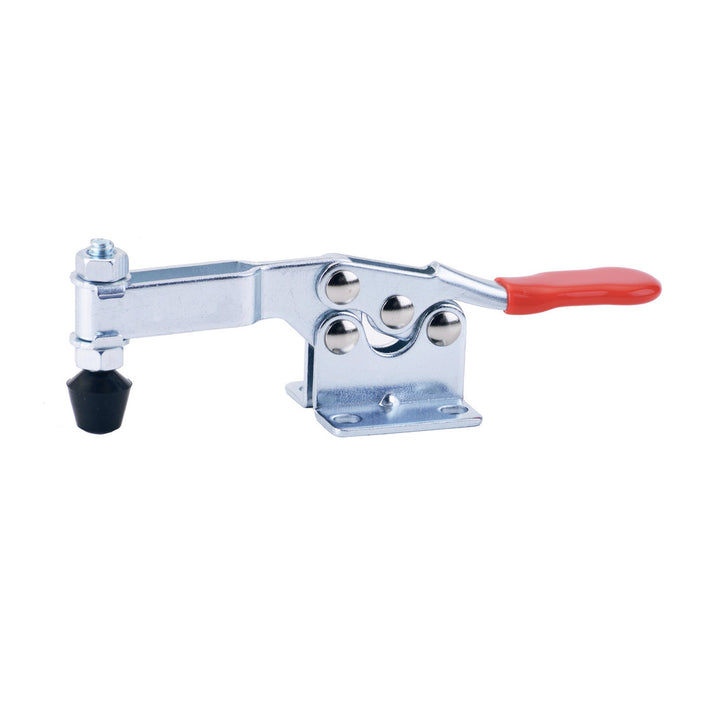

Toggle Clamp - Hertel CH-201-B
MFR# CH-201-B
$10.03List $12.59
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-201-B is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees85
Bar styleU-Bar
Bar thickness0.5000
Bar width0.4490
Base length (mm)37.00
Base styleFlanged
Base width in1.4170
Finish coatingZinc
Front of base to tip of toggle bar2.2440
Front of base to toggle tip2.24in
Handle colorRed
Handle materialSteel
Handle movement degrees60
Handle orientationHorizontal
Handle styleStraight
Height under bar0.9840
Holding capacity kg89.81
Holding capacity lb198.00
Holding capacity n880.74
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.06
MaterialSteel
Mounting hole diameter0.2030
Number of mounting holes4
Overall height1.4840
Overall length5.7090
Spindle length1.7700
Width distance between mount holes0.8660
