Hertel

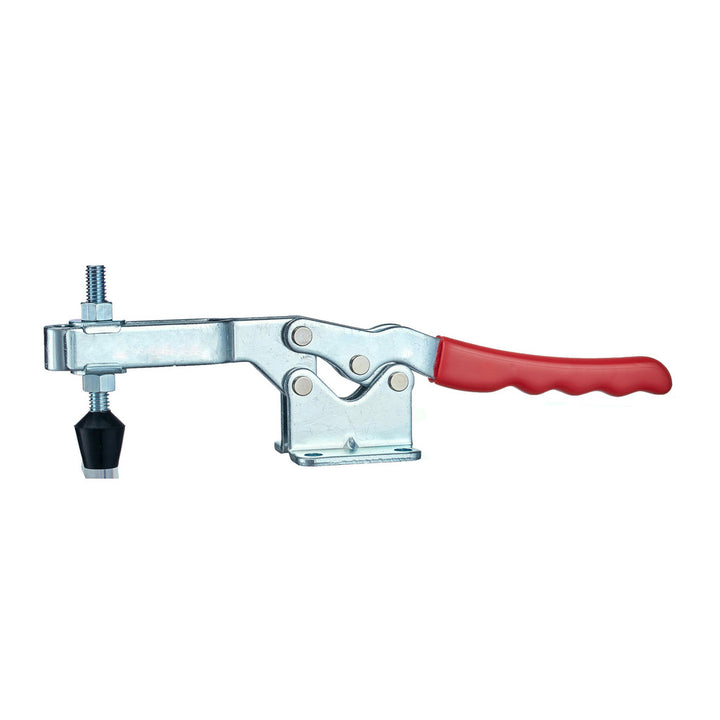

Toggle Clamp - Hertel CH-20235
MFR# CH-20235
$19.39List $23.92
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-20235 is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees85
Bar styleU-Bar
Bar thickness0.7480
Bar width0.7480
Base length (mm)57.70
Base styleFlanged
Base width in2.2520
Finish coatingZinc
Front of base to tip of toggle bar4.2130
Front of base to toggle tip4.21in
Handle colorRed
Handle materialSteel
Handle movement degrees55
Handle orientationHorizontal
Handle styleStraight
Height under bar1.7130
Holding capacity kg340.19
Holding capacity lb750.00
Holding capacity n3336.15
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.625
MaterialSteel
Mounting hole diameter0.3280
Number of mounting holes4
Overall height2.4610
Overall length11.6530
Spindle length3.5000
Width distance between mount holes1.6260
