Hertel

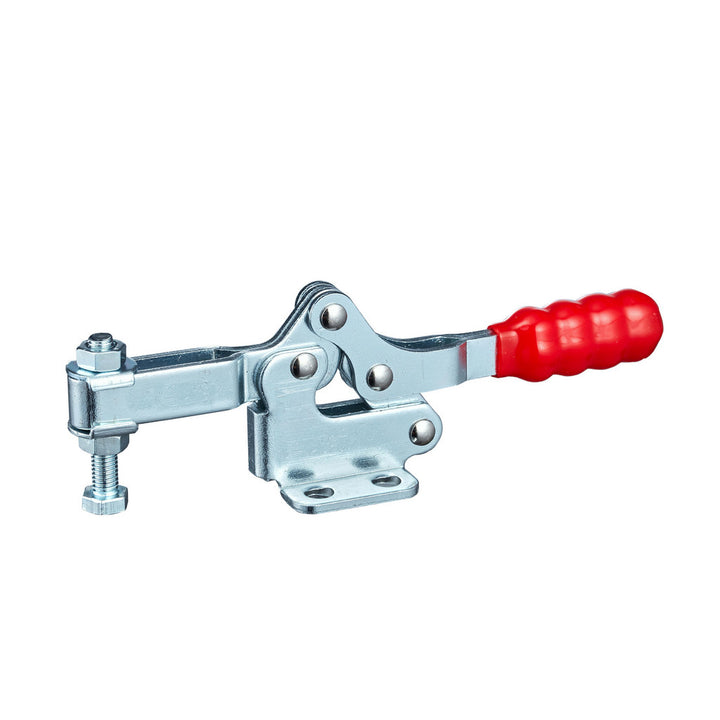

Toggle Clamp - Hertel CH-20752-B
MFR# CH-20752-B
$9.79List $12.28
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-20752-B is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees94
Bar styleU-Bar
Bar thickness0.3740
Bar width0.3620
Base length (mm)25.00
Base styleFlanged
Base width in1.0630
Finish coatingZinc
Front of base to tip of toggle bar1.5120
Front of base to toggle tip1.51in
Handle colorRed
Handle materialSteel
Handle movement degrees76
Handle orientationHorizontal
Handle styleStraight
Height under bar0.7480
Holding capacity kg74.84
Holding capacity lb165.00
Holding capacity n733.95
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.5313
MaterialSteel
Mounting hole diameter0.2030
Number of mounting holes4
Overall height1.5040
Overall length4.7240
Spindle length1.1810
Width distance between mount holes0.6610
