Hertel

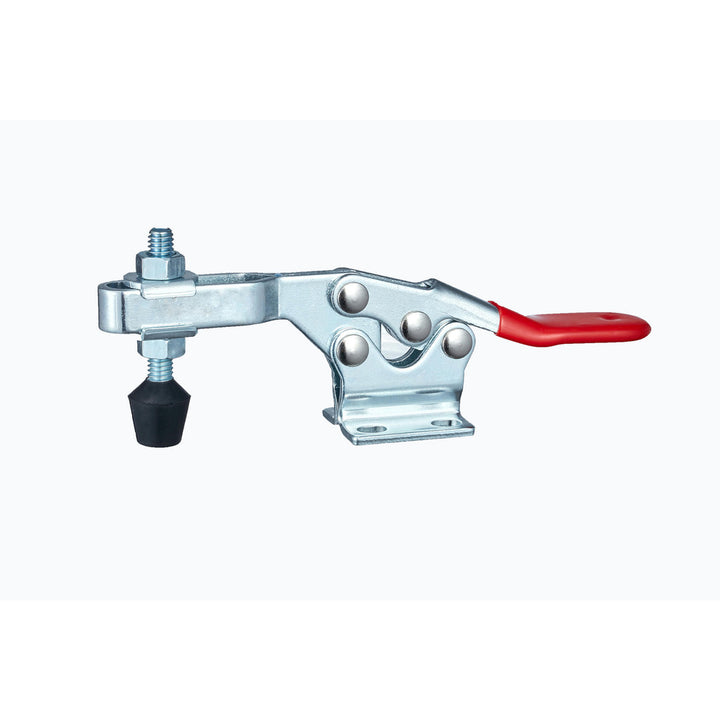

Toggle Clamp - Hertel CH-225-D
MFR# CH-225-D
$10.85List $13.62
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-225-D is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleU-Bar
Bar thickness0.5000
Bar width0.6060
Base length (mm)38.40
Base styleFlanged
Base width in1.3780
Finish coatingZinc
Front of base to tip of toggle bar2.7950
Front of base to toggle tip2.79in
Handle colorRed
Handle materialSteel
Handle movement degrees65
Handle orientationHorizontal
Handle styleStraight
Height under bar1.3740
Holding capacity kg226.80
Holding capacity lb500.00
Holding capacity n2224.10
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.91
MaterialSteel
Mounting hole diameter0.2600
Number of mounting holes4
Overall height1.8740
Overall length6.8310
Spindle length2.4800
Width distance between mount holes0.8740
