Hertel

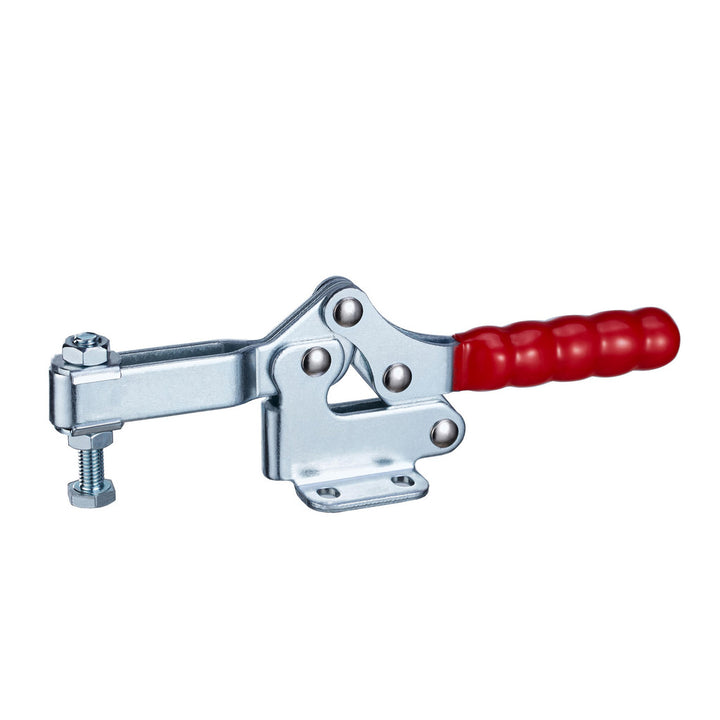

Toggle Clamp - Hertel CH-22502-B
MFR# CH-22502-B
$13.50List $16.95
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-22502-B is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees94
Bar styleU-Bar
Bar thickness (mm)17.50
Bar width0.6180
Base length (mm)42.00
Base styleFlanged
Base width in1.8500
Finish coatingZinc
Front of base to tip of toggle bar3.0790
Front of base to toggle tip3.07in
Handle colorRed
Handle materialSteel
Handle movement degrees76
Handle orientationHorizontal
Handle styleStraight
Height under bar1.3390
Holding capacity kg249.93
Holding capacity lb551.00
Holding capacity n2450.96
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.0236
MaterialSteel
Mounting hole diameter0.2600
Number of mounting holes4
Overall height2.6970
Overall length8.7400
Spindle length1.9700
Width distance between mount holes1.1220
