Hertel

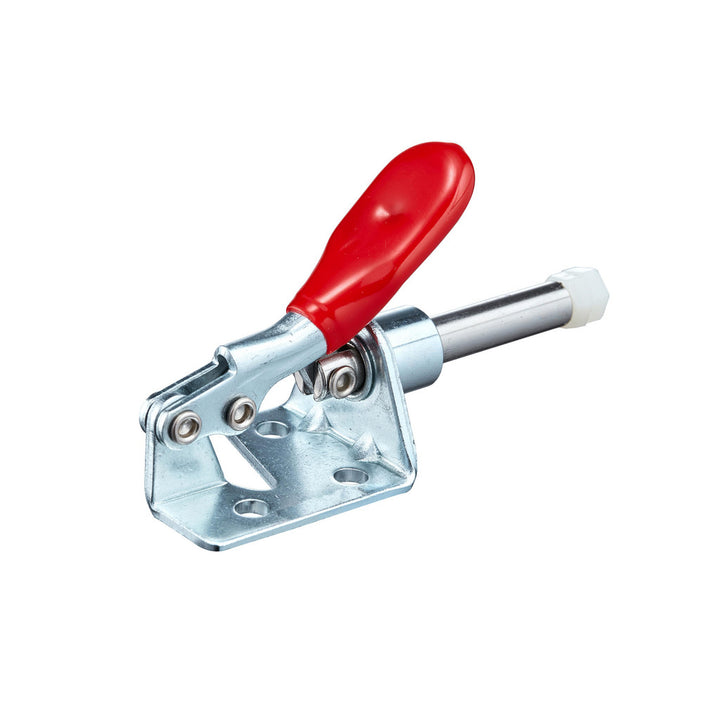

Toggle Clamp - Hertel CH-301-A
MFR# CH-301-A
$12.08List $15.17
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-301-A is a steel toggle clamp.
Specifications
Base length1.3110
Base styleFlanged
Base width in1.0630
Clamp materialSteel
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle styleStraight
Holding capacity kg45.36
Holding capacity lb100.00
Holding capacity n444.82
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in0.6250
Load capacity444.82N; 100lb; 45.36lb
Load capacity n444.82
MaterialSteel
Mounting hole diameter0.1720
Number of mounting holes3
Overall height1.5900
Overall length2.6790
Plunger centerline height in1/2
Plunger diameter0.2520
Plunger shapeRound
Plunger thread sizeM4
Plunger thread styleInternal
Plunger travel0.6575
Spindle length0.7480
Width distance between mount holes0.6260
