Hertel

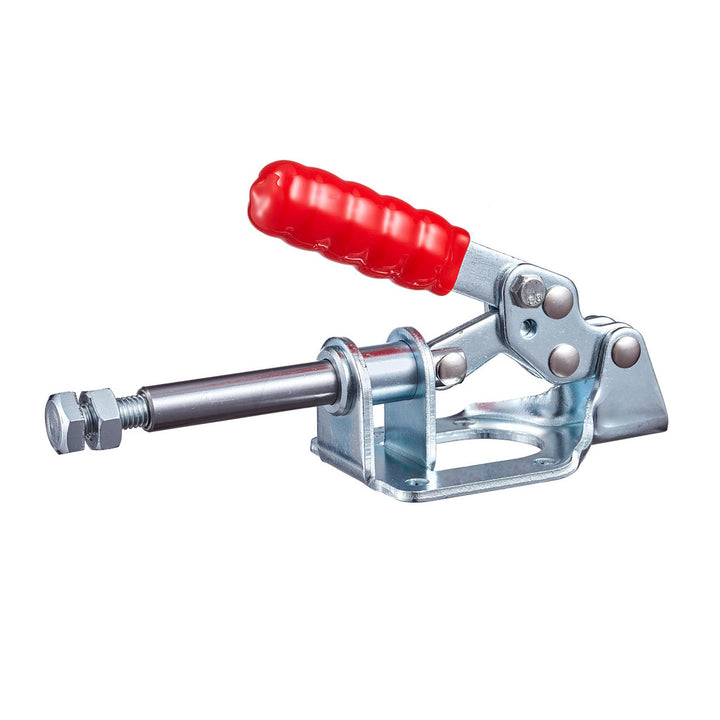

Toggle Clamp - Hertel CH-302-F
MFR# CH-302-F
$18.49List $23.21
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-302-F is a steel toggle clamp.
Specifications
Base length3.5630
Base styleFlanged
Base width in2.2200
Clamp materialSteel
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle styleStraight
Holding capacity kg136.08
Holding capacity lb300.00
Holding capacity n1334.46
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in1.3800
Load capacity1334.46N; 136.08lb; 300lb
Load capacity n1334.46
MaterialSteel
Mounting hole diameter0.2165
Number of mounting holes4
Overall height3.0700
Overall length5.4920
Plunger centerline height0.9685
Plunger diameter0.4250
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.2598
Spindle length1.9700
Width distance between mount holes1.6140
