Hertel

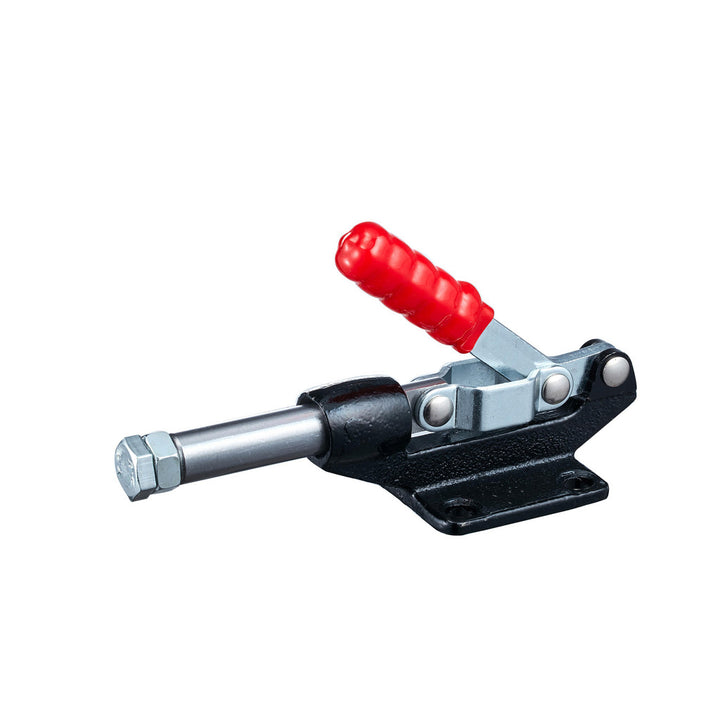

Toggle Clamp - Hertel CH-304-E
MFR# CH-304-E
$39.80List $49.09
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-304-E is a steel toggle clamp.
Specifications
Base length2.3150
Base styleFlanged
Base width in2.2520
Clamp materialSteel
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle styleStraight
Holding capacity kg385.55
Holding capacity lb850.00
Holding capacity n3780.97
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in1.6200
Load capacity3780.97N; 385.55lb; 850lb
Load capacity n3780.97
MaterialSteel
Mounting hole diameter0.3280
Number of mounting holes4
Overall height3.7950
Overall length6.2290
Plunger centerline height1.2520
Plunger diameter0.6300
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel1.6535
Spindle length1.9700
Width distance between mount holes1.6180
