Hertel

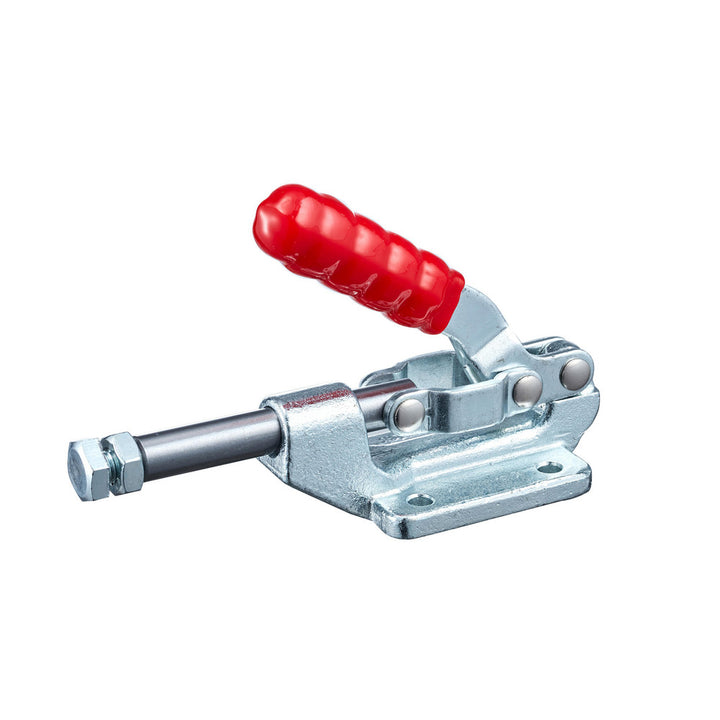

Toggle Clamp - Hertel CH-36003
MFR# CH-36003
$19.65List $24.67
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-36003 is a steel toggle clamp.
Specifications
Base length2.2830
Base styleFlanged
Base width in1.8740
Clamp materialSteel
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle styleStraight
Holding capacity kg272.15
Holding capacity lb600.00
Holding capacity n2668.92
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in1.4300
Load capacity2668.92N; 272.15lb; 600lb
Load capacity n2668.92
MaterialSteel
Mounting hole diameter0.2200
Number of mounting holes4
Overall height3.3070
Overall length4.8930
Plunger centerline height0.9685
Plunger diameter0.4330
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.2520
Spindle length1.9700
Width distance between mount holes1.3110
