Hertel

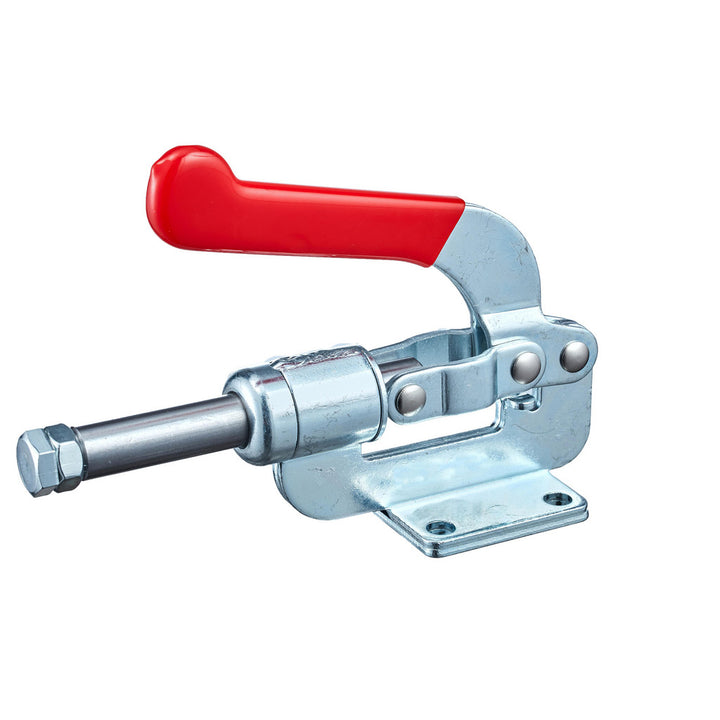

Toggle Clamp - Hertel CH-36010
MFR# CH-36010
$31.23List $39.20
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-36010 is a steel toggle clamp.
Specifications
Base length2.2520
Base styleFlanged
Base width in2.2520
Clamp materialSteel
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle orientationHorizontal
Handle styleStraight
Holding capacity kg362.87
Holding capacity lb800.00
Holding capacity n3558.56
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in1.6250
Load capacity3558.56N; 362.87lb; 800lb
Load capacity n3558.56
MaterialSteel
Mounting hole diameter0.3438
Number of mounting holes4
Overall height4.3310
Overall length6.7520
Plunger centerline height1.7480
Plunger diameter0.6140
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel1.6063
Spindle length2.4800
Width distance between mount holes1.6260
