Hertel

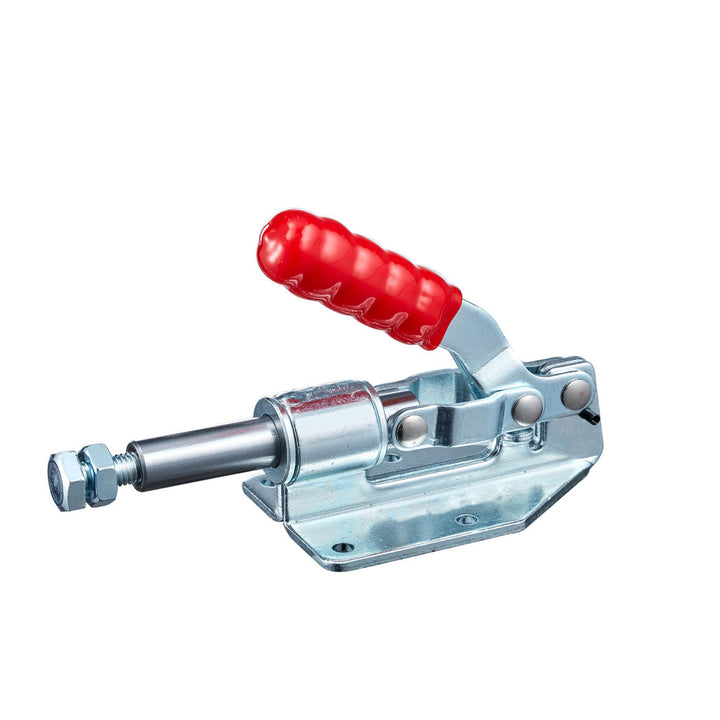

Toggle Clamp - Hertel CH-36092
MFR# CH-36092
$20.25List $25.42
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-36092 is a steel toggle clamp.
Specifications
Base length3.6220
Base styleFlanged
Base width in2.1890
Clamp materialSteel
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle orientationHorizontal
Handle styleStraight
Holding capacity kg180.08
Holding capacity lb397.00
Holding capacity n1765.94
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in1.3400
Load capacity1765.94N; 180.08lb; 397lb
Load capacity n1765.94
MaterialSteel
Mounting hole diameter0.2030
Number of mounting holes4
Overall height3.2280
Overall length5.1180
Plunger centerline height0.9606
Plunger diameter in1/2
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.2598
Spindle length1.9700
Width distance between mount holes1.6260
