Hertel

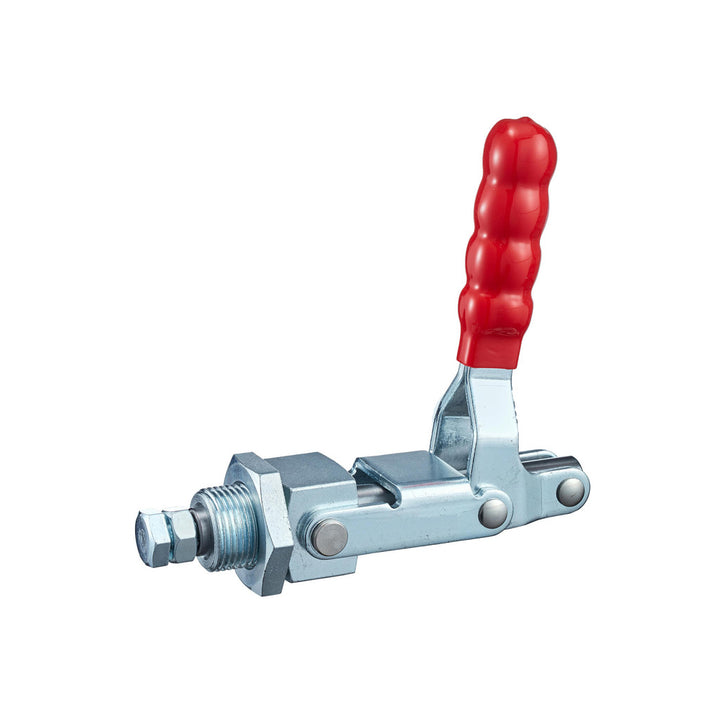

Toggle Clamp - Hertel CH-36224
MFR# CH-36224
$39.86List $49.16
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-36224 is a carbon steel toggle clamp.
Specifications
Clamp materialSteel
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle styleStraight
Holding capacity kg317.51
Holding capacity lb700.00
Holding capacity n3113.74
Includes(1) Spindle; (2) Nuts
Jam nut height0.3150
Jam nut hex size1.6200
Jam nut thread size1-14
Load capacity3113.74N; 317.51lb; 700lb
Load capacity n3114.00
MaterialCarbon Steel
Maximum mechanical advantage21:1
Overall height5.4720
Overall length6.6770
Plunger diameter0.6180
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel2.5787
Spindle length1.9700
