Hertel

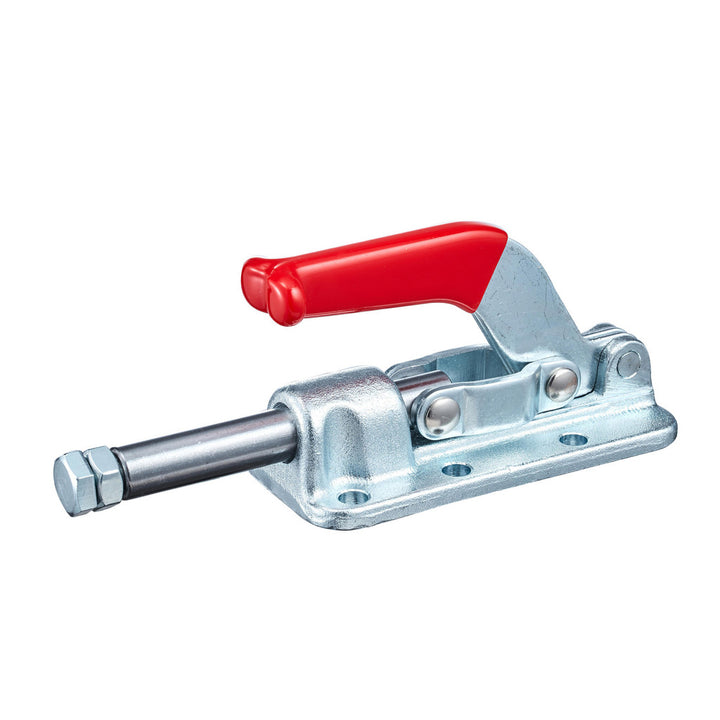

Toggle Clamp - Hertel CH-36330
MFR# CH-36330
$37.05List $46.51
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-36330 is a steel toggle clamp.
Specifications
Base length5.0390
Base styleFlanged
Base width in2.3030
Clamp materialSteel
Handle colorRed
Handle styleStraight
Holding capacity kg1133.96
Holding capacity lb2500.00
Holding capacity n11120.50
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in1.3800; 1.6200
Load capacity11121
Load capacity n11120.50
MaterialSteel
Number of mounting holes6
Overall height2.9530
Overall length7.0870
Plunger centerline height0.8110
Plunger diameter0.6300
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel1.9685
Width distance between mount holes1.3800
