Hertel

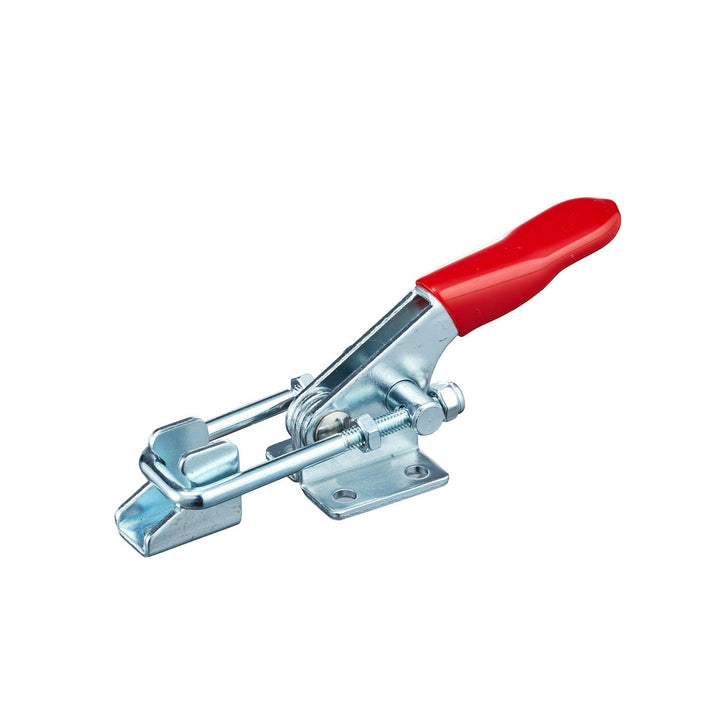

Toggle Clamp - Hertel CH-40323
MFR# CH-40323
$13.97List $17.53
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-40323 is a steel toggle clamp.
Specifications
Bar styleU-Hook
Base length1.03
Base length (mm)26.29
Base styleFlanged
Base width in1.1100
Body materialSteel
Clamping orientationHorizontal
Drawing movement1.1800
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle orientationHorizontal
Handle styleStraight
Holding capacity360.00
Holding capacity kg163.29
Holding capacity n1601.35
Length distance between mount holes in5/8
Load capacity1601.35N; 360lb
Load capacity kg163.29
Load capacity n1601.35
MaterialSteel
Mounting hole diameter0.1720
Mounting hole diameter (mm)4.32
Number of mounting holes4
Overall height1.2800
Overall length3.0700
Width distance between mounting holes0.7480
Width distance between mount holes (mm)19.00
