Hertel

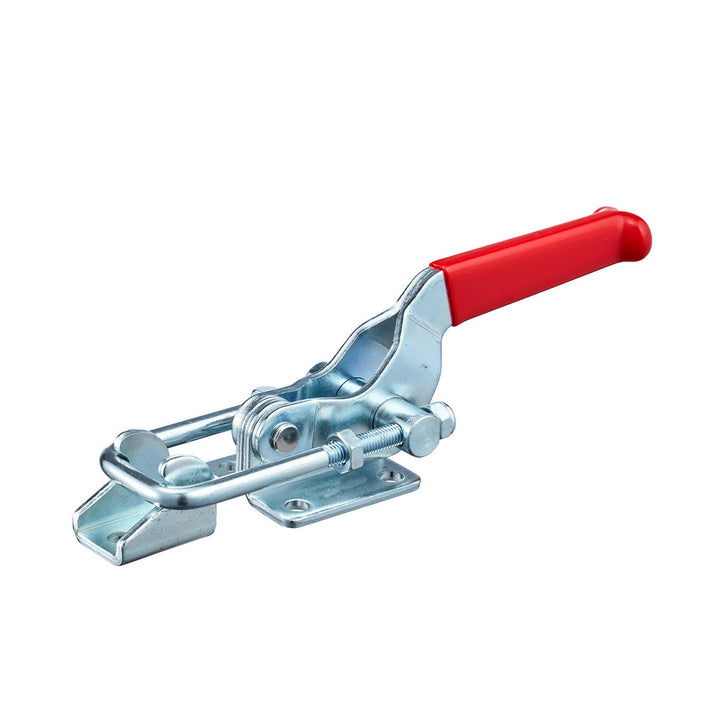

Toggle Clamp - Hertel CH-40341
MFR# CH-40341
$28.72List $36.05
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-40341 is a steel toggle clamp.
Specifications
Bar styleU-Hook
Base length2.37
Base styleFlanged
Base width in2.1260
Body materialSteel
Clamping orientationHorizontal
Drawing movement in2-1/2
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle orientationHorizontal
Handle styleStraight
Holding capacity1984.00
Holding capacity kg899.92
Holding capacity n8825.23
Length distance between mount holes in1-5/8
Load capacity8825.23N; 1984lb
Load capacity kg899.92
Load capacity n8825.23
MaterialSteel
Mounting hole diameter0.3346
Mounting hole diameter (mm)8.50
Number of mounting holes4
Overall height3.0510
Overall length6.9690
Width distance between mounting holes1.5000
Width distance between mount holes in1-1/2
