Hertel

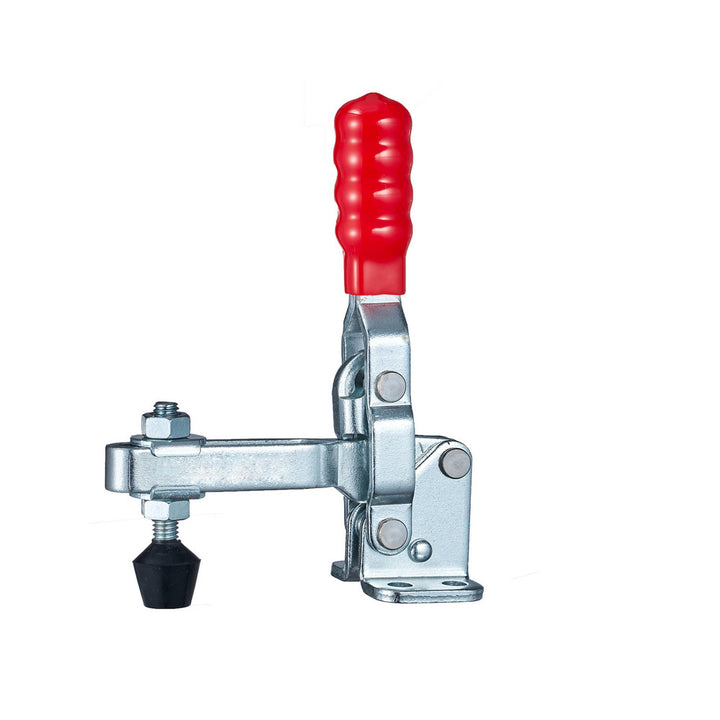

Toggle Clamp - Hertel CH-D202-UL
MFR# CH-D202-UL
$12.11List $15.20
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-D202-UL is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees105
Bar styleU-Bar
Bar thickness0.3940
Bar width0.4880
Base length in1
Base styleFlanged
Base width in1.5700
Finish coatingZinc
Front of base to tip of toggle bar2.2400
Front of base to toggle tip2.24in
Handle colorRed
Handle materialSteel
Handle movement degrees65
Handle orientationVertical
Handle styleStraight
Height under bar0.9060
Holding capacity kg90.72
Holding capacity lb200.00
Holding capacity n889.64
Length distance between mount holes in0.5
MaterialSteel
Mounting hole diameter0.2200
Number of mounting holes4
Overall height4.3500
Overall length3.2400
Spindle length1.7320
Width distance between mount holes1.0600
