Hertel

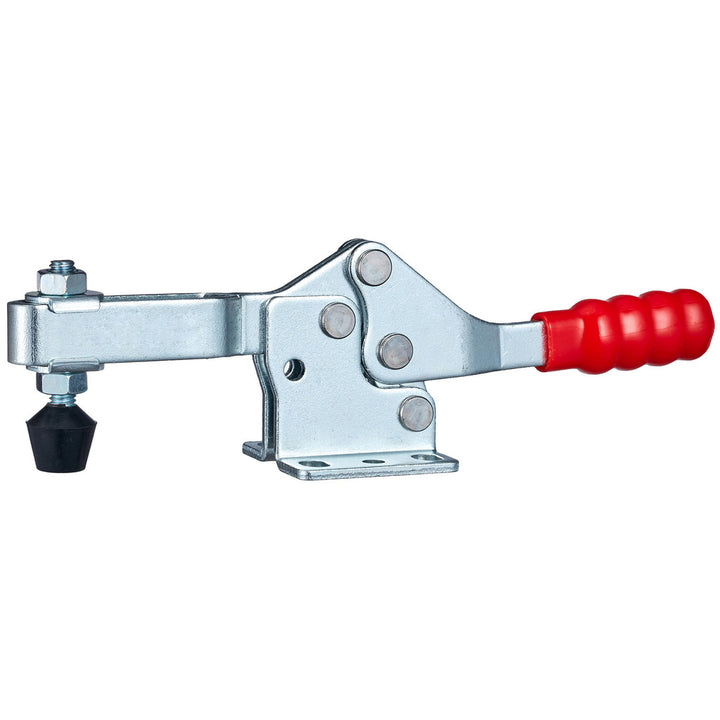

Toggle Clamp - Hertel CH-D217-U
MFR# CH-D217-U
$15.30List $19.21
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-D217-U is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees91
Bar styleU-Bar
Bar thickness0.5120
Bar width0.4880
Base length (mm)37.50
Base styleFlanged
Base width in1.5500
Finish coatingZinc
Front of base to tip of toggle bar2.3000
Front of base to toggle tip2.30in
Handle colorRed
Handle materialSteel
Handle movement degrees61
Handle orientationHorizontal
Handle styleStraight
Height under bar0.9840
Holding capacity kg90.72
Holding capacity lb200.00
Holding capacity n889.64
Length distance between mount holes in1.03
MaterialSteel
Mounting hole diameter0.2300
Number of mounting holes4
Overall height1.9200
Overall length6.5940
Spindle length1.7320
Width distance between mount holes1.0070
