Hertel

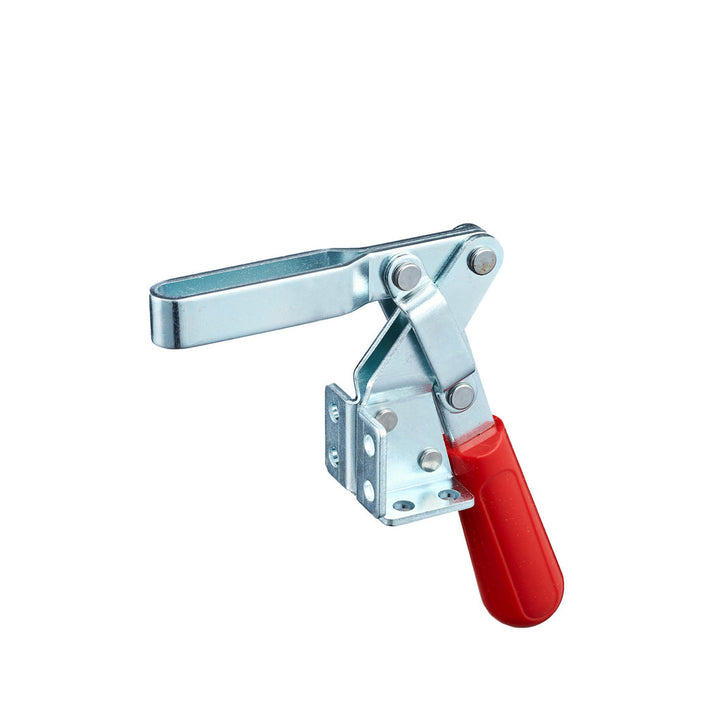

Toggle Clamp - Hertel CH-D317
MFR# CH-D317
$25.22List $31.66
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel CH-D317 is a steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees185
Bar styleU-Bar
Bar thickness0.6300
Bar width0.6060
Base length (mm)35.10
Base styleFlanged
Base width in1.5000
Finish coatingZinc
Front of base to tip of toggle bar2.5790
Front of base to toggle tip2.57in
Handle colorRed
Handle materialSteel
Handle movement degrees60
Handle orientationHorizontal
Handle styleStraight
Height under bar2.7560
Holding capacity kg170.10
Holding capacity lb375.00
Holding capacity n1668.08
Length distance between mount holes in0.63
MaterialSteel
Mounting hole diameter0.2600
Number of mounting holes4
Overall height5.7680
Overall length5.7870
Width distance between mount holes0.9800
