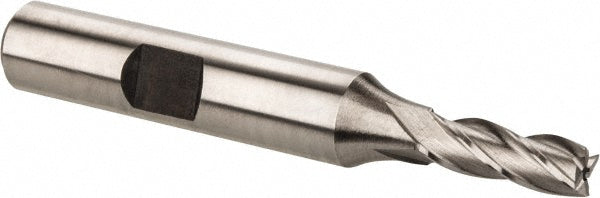

7/32" 4-Flute High Speed Steel Square End Mill - Hertel E103101401

Hertel

7/32" 4-Flute High Speed Steel Square End Mill - Hertel E103101401

MFR# E103101401

$17.19List $21.67 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/32
Flutes4
MaterialHigh Speed Steel

Description

The Hertel E103101401 is a 7/32 4-flute High Speed Steel (M7) square end mill. 5/8 length of cut, 2-7/16 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Material gradeM7
Mill diameter in7/32
Number of flutes4
Overall length in2-7/16
Shank diameter in3/8
Variable helixNo
Variable indexNo
