Hertel

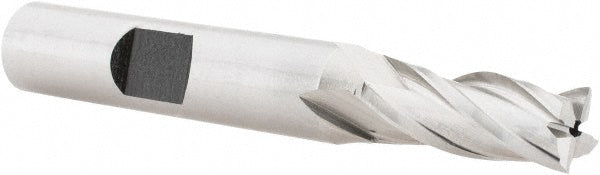

5/16" 4-Flute High Speed Steel Square End Mill - Hertel E1031020
MFR# E1031020
$13.53List $17.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes4
MaterialHigh Speed Steel
Description
The Hertel E1031020 is a 5/16 4-flute High Speed Steel (M7) square end mill. 3/4 length of cut, 2-1/2 overall length.
Specifications
CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Material gradeM7
Mill diameter in5/16
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
Variable indexNo
