1/2" 4-Flute High Speed Steel Square End Mill - Hertel E1031903

Hertel

1/2" 4-Flute High Speed Steel Square End Mill - Hertel E1031903

MFR# E1031903

$28.87List $37.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialHigh Speed Steel

Description

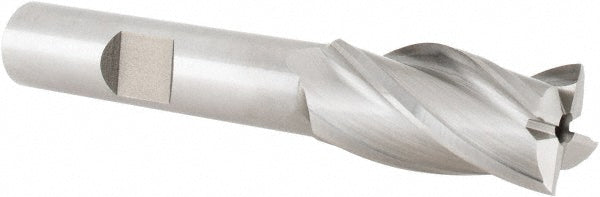

The Hertel E1031903 is a 1/2 4-flute High Speed Steel (M7) square end mill. 1 length of cut, 2-11/16 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeM7
Mill diameter in1/2
Number of flutes4
Overall length in2-11/16
Shank diameter in3/8
Variable helixNo
Variable indexNo
